ALPHA ESS Energy Storage Systems

Prices start from $7.5k (installation included)

Featuring:

AC Coupling System
Batteries for residential, commercial and industrial applications
Made with lithium iron phosphate
German design
Multiple operation modes

Description

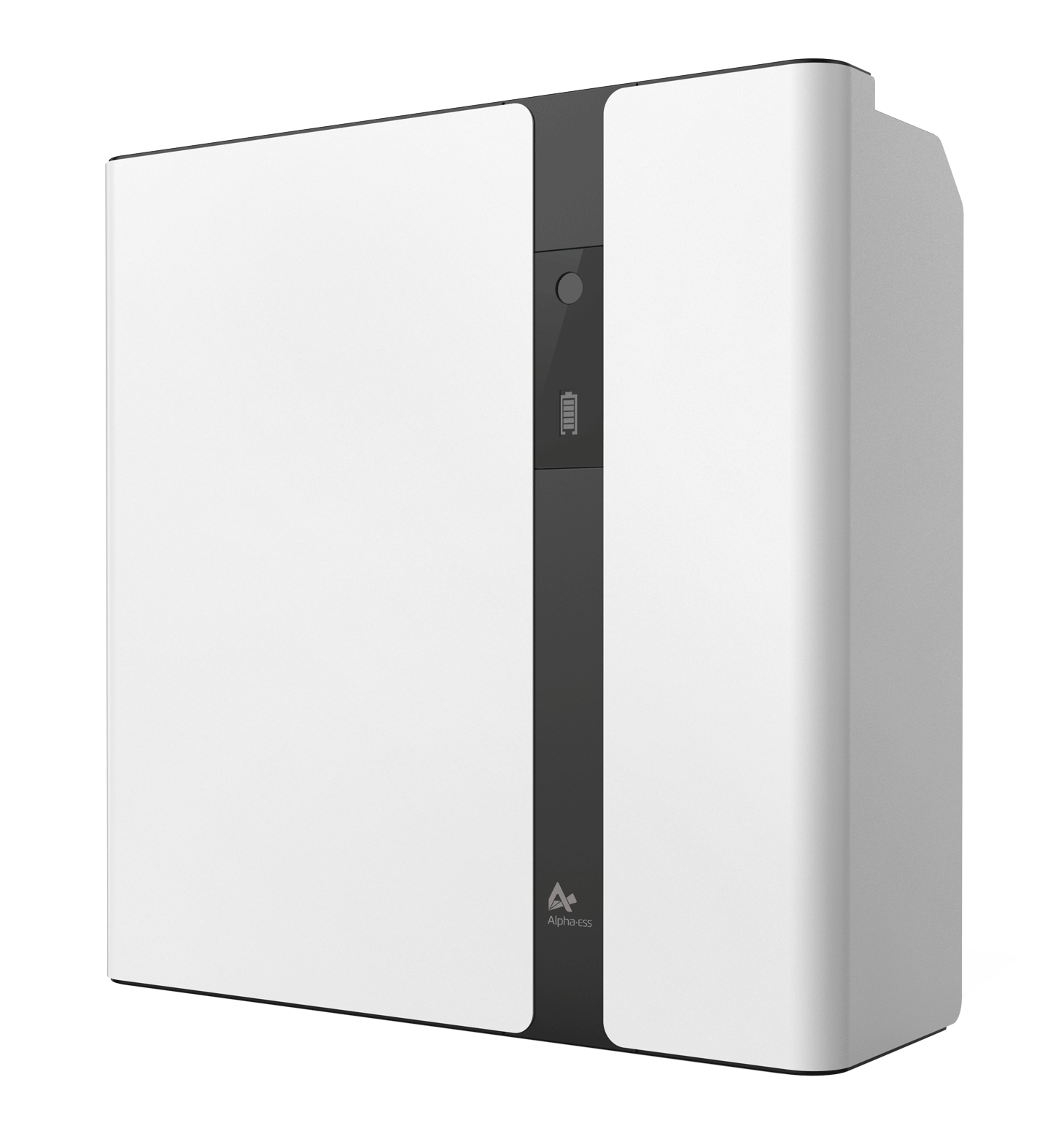

Alpha ESS Energy Storage Systems

Alpha ESS battery systems can be used with your new or existing solar system. This powerful solar energy storage captures and stores the electricity to power your home when your solar panels aren’t producing enough electricity to supply your appliances.

Alpha ESS offers energy storage solutions for residential, commercial and industrial applications. The larger Powerpack is intended for commercial or electric utility grid use and can be used for peak shaving, load shifting, backup power, demand response, microgrids, renewable energy integration, frequency regulation, and voltage control.

Options

Residential

Designed by German engineers and compatible with both new installations and retrofits (except for the SMILE-SPB which is only compatible with AC-coupled retrofits), Alpha ESS’ lithium iron phosphate energy storage systems for residential applications can give you the reliability and convenience that you’re looking for.

SMILE-B3 (3,000W / 2.9 - 17.2kWh)
Features:
- AC-Coupling
- Built-in battery
- Modular design
- Easy installation and low maintenance
- 24/7 Monitoring
Specifications:
- Output: 3000 W
- Battery Capacity: 2.9 kWh
- Battery Expansion: M4856-P
- DOD: 96%
- Max. Capacity: 2.9 + 14.4 kWh
- Dimensions: 610 x 236 x 625 mm
- Weight: 45 kg
- Certifications: CE,IEC
SMILE-B3-PLUS (3,000W / 5.04 - 30.24kWh)
Features:
- UPS Ability
- Cost-effective
- All-in-one Module
- 24/7 Online Monitor
- Fit for All PV Inverters
- Continuous 3kW Backup
- Easy Installation and Expansion
Specifications:
- Output: 3000 W
- Battery Capacity: 5.0 kWh
- IP Protection: IP65
- DOD: 95%
- Max. Capacity: 30.24 kWh
- Dimensions: 630 x 236 x 685 mm
- Weight: 60 kg
- Certifications: CE,IEC
SMILE-SP SERIES (7600, 9600W / 8.2 - 49.2kWh)
Features:
- Outdoor
- AFCI & Rapid Shutdown
- 4 MPPTs
- 24/7 Monitoring
- WIFI Module Integrated
- Compatible with both new installations and retrofits (AC- or DC-coupled)
Specifications:
- Output: 7600 W / 9600 W
- Battery Capacity: 8.2 kWh / 7.8 kWh
- Max. Capacity: 49.2 kWh
- IP Protection: IP21 (Indoor) / IP65 (Outdoor)
- DOD: 95%
SMILE-SPB SERIES (7600, 9600W / 2.9 - 80kWh)
Features:
- Outdoor
- AFCI & Rapid Shutdown
- 4 MPPTs
- 24/7 Monitoring
- WIFI Module Integrated
- Compatible with retrofits (AC-coupled)
Specifications:
- Output: 7600 W / 9600 W
- Battery Capacity: 8.2 kWh / 7.8 kWh
- Max. Capacity: 49.2 kWh
- IP Protection: IP21 (Indoor) / IP65 (Outdoor)
- DOD: 95%
SMILE5 (5,000W / 2.9 - 80kWh)
Features:
- Self-Consumption
- Modular design
- Intelligent design
- Long Lifetime
- Visualization
Specifications:
- Output: 5000 W / 4600 W (DE)
- Battery Capacity: 2.9 kWh / 5.7 kWh / 10.1 kWh / 10.3 kWh / 13.3 kWh
- Max. Capacity: 80 kWh
- IP Protection: IP21 (Indoor) / IP65 (Outdoor)
- DOD: 96%
SMILE-S6-HV (6,000W / 4.9 - 49.5 kWh)
Features:
- Maximize photovoltaic utilization
- Off-grid available ( 150% overload for 30s )
- Easy installation
- Built-in Class II lightning protection circuit
Specifications:
- Output: 6000 W
- Battery Chemistry: LFP (LiFePO4)
- DOD: 95%
- Warranty: 5 Year Product Warranty, 10 Year Performance Warranty
- Max Capacity: 49.5 kWh
- IP Protection: IP21 (Indoor) / IP65 (Outdoor)
- Phase: Single phase
SMILE-T10-HV (10,000W / 8.2 - 49.5 kWh)
Features:
- Max. 4 strings of PV with 2 MPPT
- Available for 180mm and 210mm PV module
- Phase unbalance function
- Built-in Class II lightning protection circuit
Specifications:
- Output: 10,000 W
- Battery Chemistry: LFP (LiFePO4)
- DOD: 95%
- Warranty: 5 Year Product Warranty, 10 Year Performance Warranty
- Max Capacity: 49.5 kWh
- IP Protection: IP21 (Indoor) / IP65 (Outdoor)
- Phase: Three phase

ENQUIRE FOR PRICING

Commercial

Storion-H30 (30,000W / 34.4 - 3456kWh)
Off-grid 30kW hybrid-coupled system

Specifications:
- Output: 30 kW
- Maximum Photovoltaic Power: 60 kW
- DoD: 90%
- Max. Capacity: 3456 kWh
- Battery Type: LFP (LiFePO4)
Storion-T30 (30,000W / 28.7 - 68.8kWh)
Features:
- AC-Coupling
- Modular design
- 24/7 Monitoring with local interface
- Easy installation and low maintenance
Specifications:
- Output: 30 kW
- Battery: M48112-S
- Cabinet Capacity: 28.7 - 68.8 kWh
- DOD: 90%
- Max Capacity: 68.8 kWh
- Dimensions: 1180 x 700 x 1500 mm
- Weight: 170 kg (without battery)
- Certifications: CE,IEC
Storion-T50/T100 (50,000/100,000W / 34.4 - 2073.6kWh)
Features:
- UPS ability
- Off-grid ability
- 24/7 Monitoring with local interface
- Modular design
- Easy installation and low maintenance
Specifications:
- Output: 50 / 100 kW
- Battery: M48112-S
- Cluster Capacity Range: 28.7 - 1032.2 kWh
- DOD: 90%
- Max Capacity: 1032.2 kWh
- Dimensions: 1180 x 700 x 1500 mm
- Weight: 520 / 750 kg (without battery)
- Certifications: CE,IEC
